LPG Flow Meter
| After-sales Service: | Sales Service Available |
|---|---|
| Warranty: | One Year |
| Accuracy: | ±0.2-0.5% |
| Main Application: | Water, Diesel Fuel, Fuel Oil, Nature Gas, Corrosive Liquid/Gas |
| Size: | DN50-100 |
| Sensor: | Tube/Flange |
In Stock
Did you like this product? Add to favorites now and follow the product.
Add to Wishlist
Add to Wishlist
Have a Question? Ask a Specialist
+2349130570152 Start Live Chat
Description
Product Description

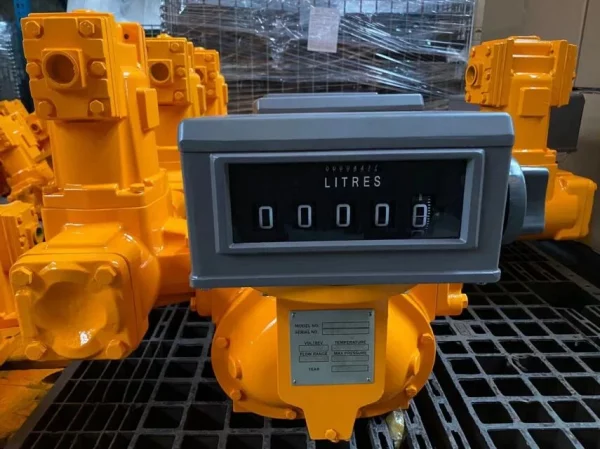

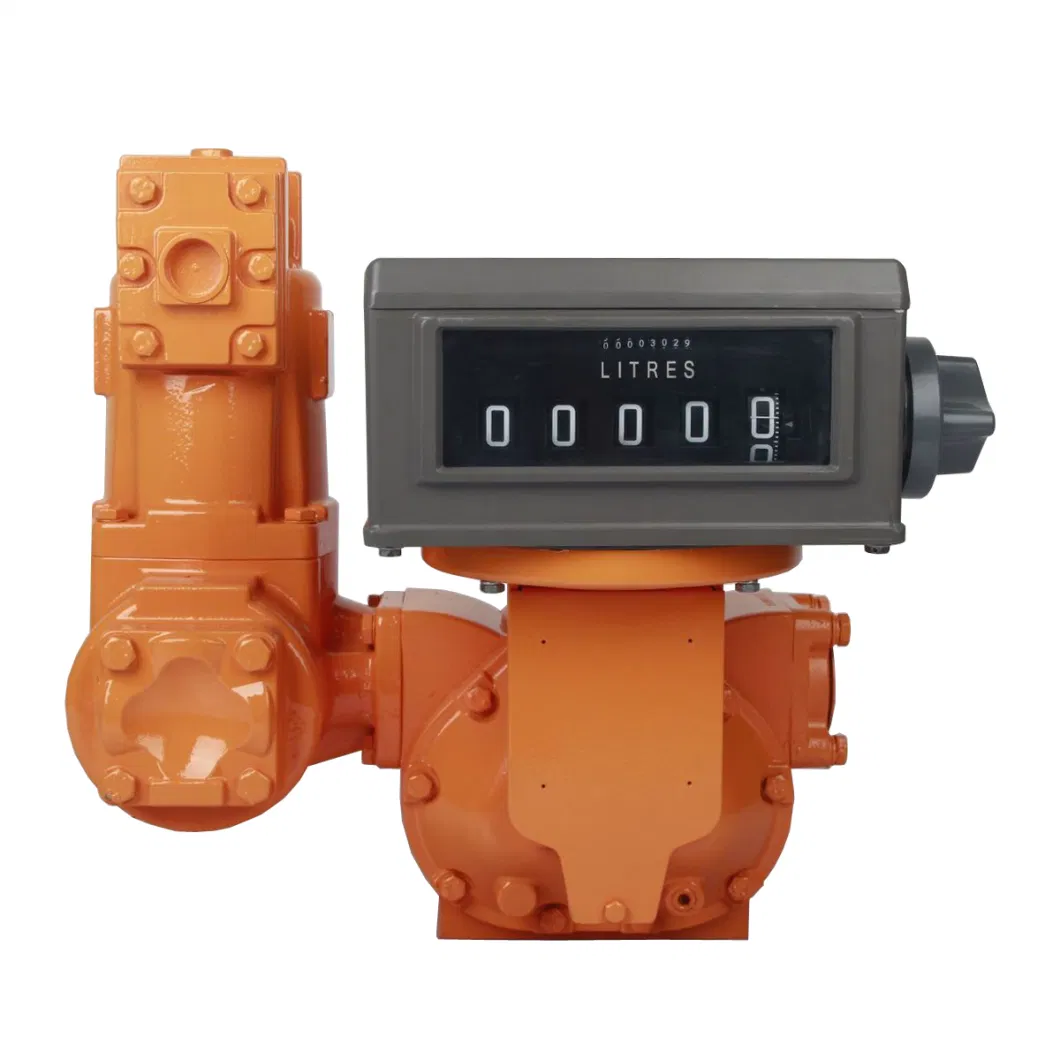

LC liquid control flow meter price
1. Features&data:
Diameter:50mm/2″
Flow Range:38-380L/Min
Volume/Rev.:0.681L
Max.Pressure:10Bar
Accuracy:±0.2%
Repeatability:≤0.05%
Viscosity:30SSU-1,500,000SSU
Measurement:Liter or Gallon
Meter Body:Aluminum
Strainer Mesh: 60Mesh
End Connection:Flange, NPT or BSPT etc.
Built-in precision totalizer accumulating to
99,999,999 units,Delivery display 5 digital
Gross Weight:50Kgs
Packaging Size:53*58*53cm
Characteristics
• Excellent stepless adjusting mechanism allows a micro adjustment of the meter
• High accuracy and repeatability over the widest range of flow; Superior accuracy
at constant flow
at constant flow
• Low maintenance, no metal-to-metal contact in measuring chamber, long life service
• Low pressure loss, a true gravity flow meter
• Accuracy regardless of pressure fluctuations, temperature variation, viscosity
• Choice of aluminum, cast iron and stainless steel materials of construction
| Technical Specification | |||||||||
| Model | M-40-1 | M-50-1 | M-50H-1 | M-80-1 | M-80H-1 | M-100-1 | M-100H-1 | M-150-1 | M-150H-1 |
| Size | 40mm / 1.5″ | 50mm / 2 “ | 80mm / 3 “ | 100mm / 4 “ | 150mm / 6 “ | ||||
| Flow Range
(L/Min) |
25-250 | 38-380 | 55-550 | 75-750 | 115-1150 | 130-1300 | 170-1700 | 225-2250 | 300-3000 |
| Volume /Rev. | 0.309L | 0.681L | 1.839L | 5.102L | 9.507L | ||||
| Max. Pressure | 10Bar/150PSI | 25Bar/350PSI | |||||||
| Accuracy | ±0.2% | ||||||||
| Repeatability | ≤0.05% | ||||||||
| Standard Measurement | Liter / US Gallon/IMP Gallon | ||||||||
| Viscosity | 30SSU~1,500,000SSU | ||||||||
2. Our products
