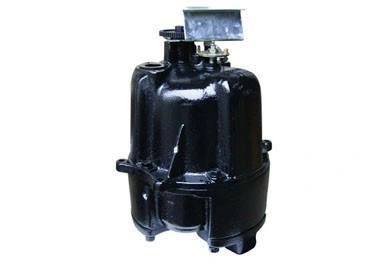

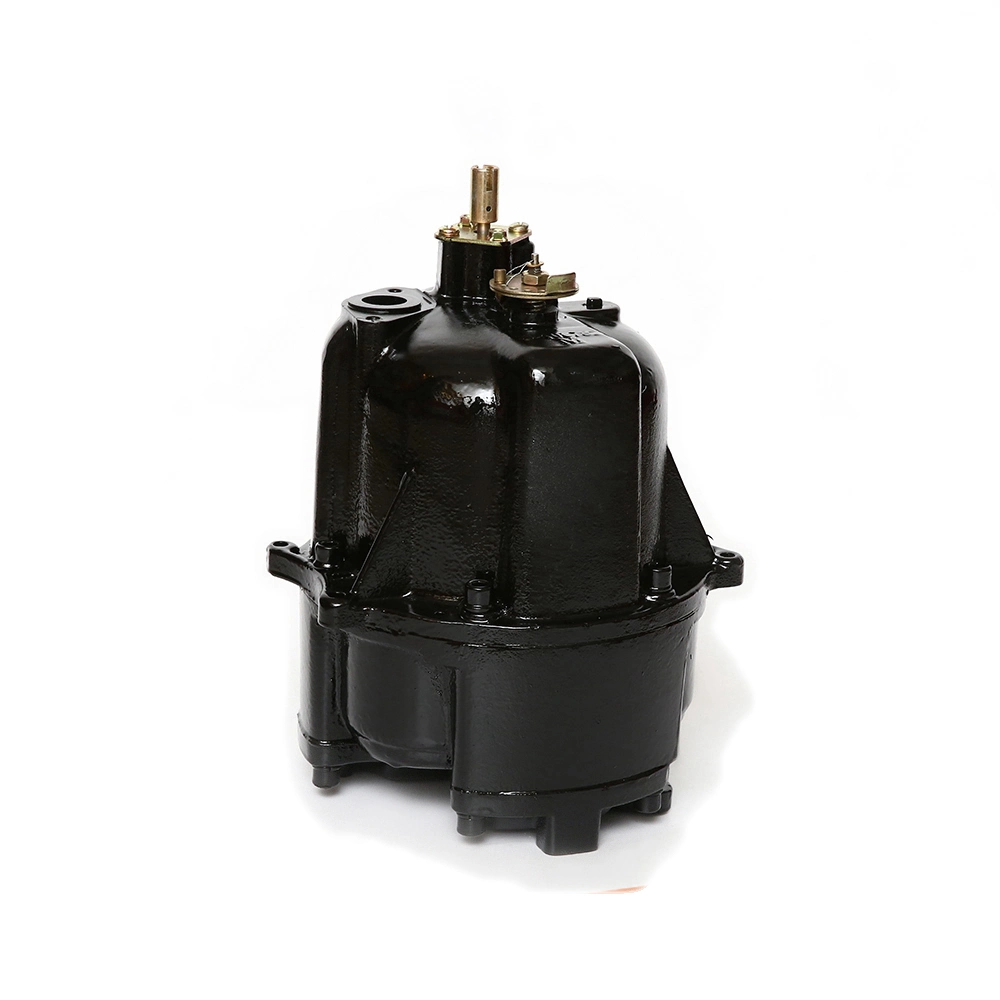

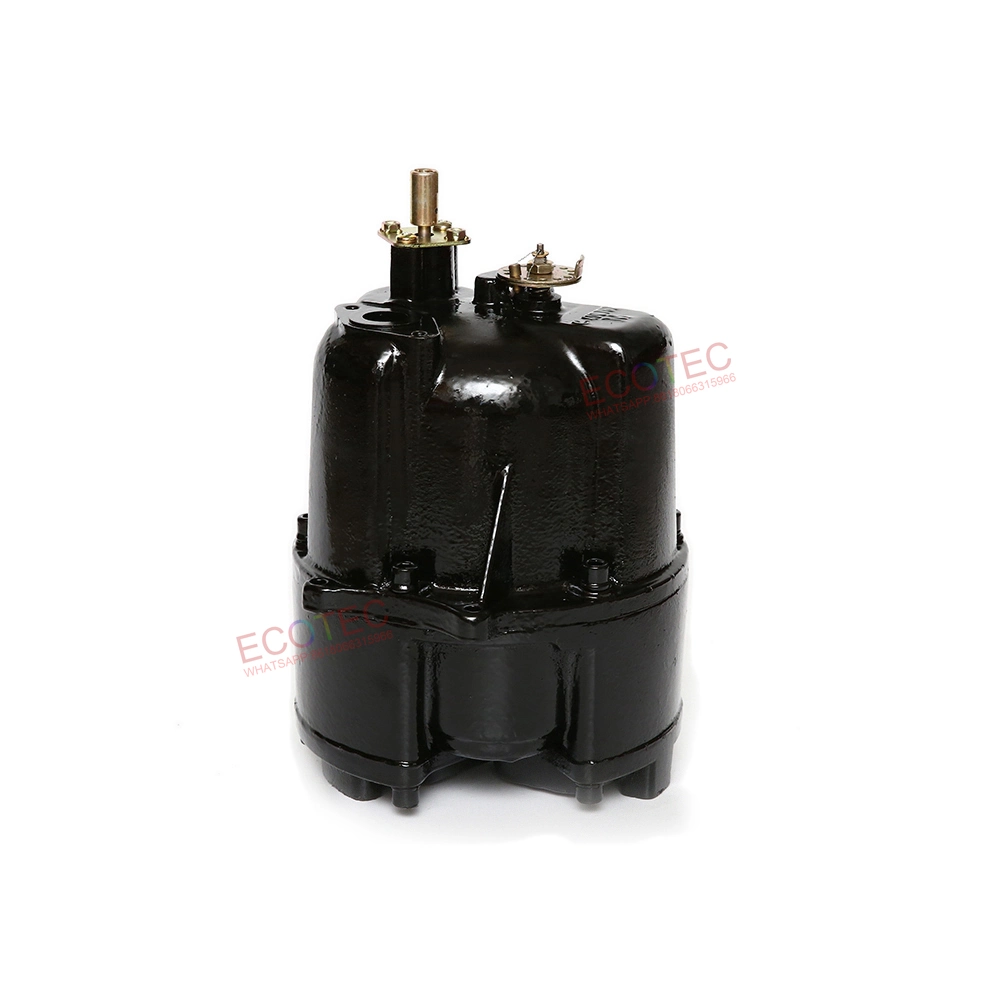

Tokheim Flowmeter
Tokheim Type Flow Meter for Fuel Dispenser :
Flow Rate:CTP2-80: 70L-85L/min;CTP2-50: 40-50L/min
Vacuum≥ 0.054Mpa
Noise≤ 72dB
Speed:900RMP
Working Pressure:0.18-0.24Mpa
Packing:1PCS/Carton
In Stock
Did you like this product? Add to favorites now and follow the product.
Add to Wishlist
Add to Wishlist
Have a Question? Ask a Specialist
+2349130570152 Start Live Chat
Description
Produce information
TYPE:
Flow meter FM2
t adopts advanced technology, which can be widely used on different gasoline dispensers. This product has advantages as long using term, high precision, firm structure etc. It can be the best choice of gasoline dispenser component.
Construction
Technical performance
| Discharge rate of each rotation | 0.5L(0.132Gallon) |
| Rotary direction of axial | CW |
| Level | 25CM |
| Vertical | 36.6CM |
| Flow range | 5-160L(1.32-43Gallon) |
| Working pressure | 0.12-0.25Mpa(17.64-36.75PSI) |
| Accuracy | 0.20% |
| Repeat Error | ≤0.1% |
| Adjustable Minimum Volume | 0.11% |
| Working Life | ≥2,000,000L(528,000Gallon) |
| Gross Weight | 23KGS |
| Packing size | 28 X 26 X 45CM(1PCS/CTN) |
